Sanitary Fittings Catalog: How Surface Finish Affects Hygiene

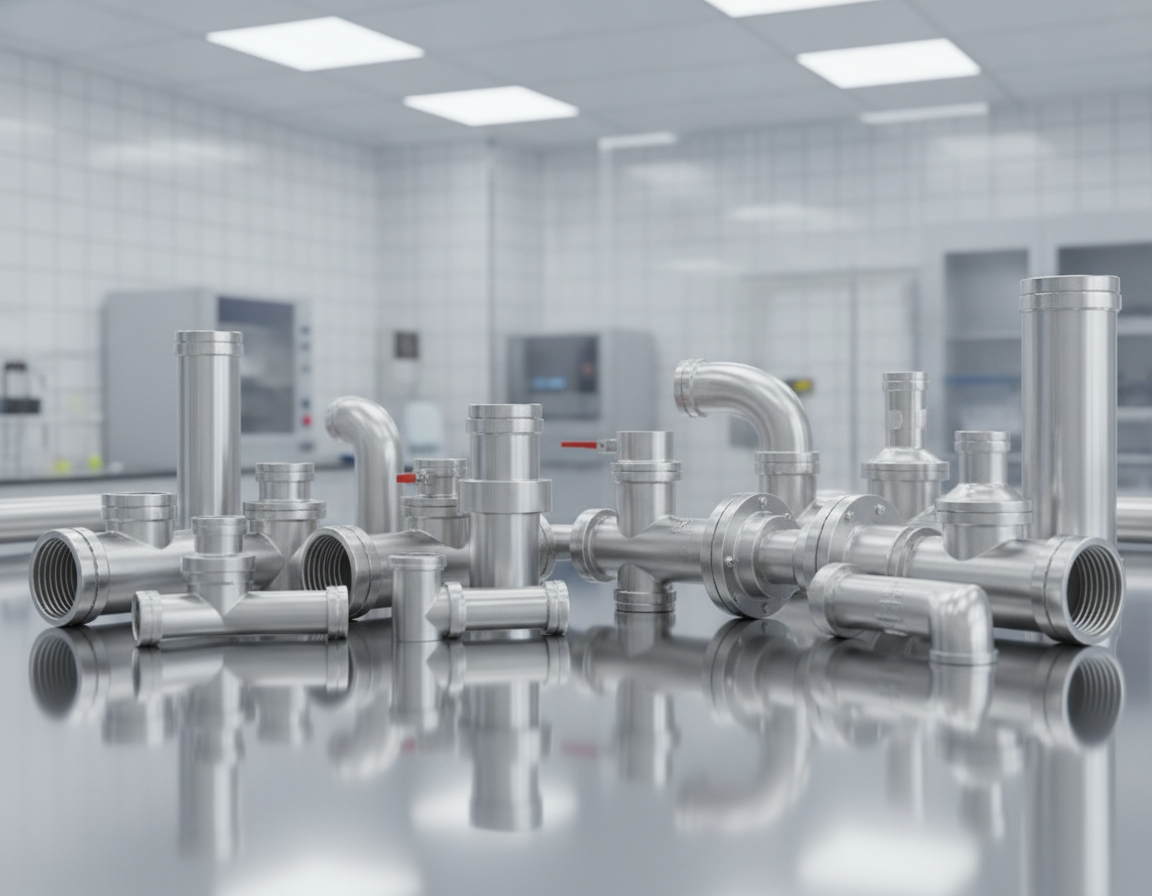

Stainless steel sanitary pipe fittings are vital in maintaining clean systems across various industries. These components, including ferrules, clamps, sanitary valves, and fittings, are built to keep fluid paths clean. They significantly reduce contamination risks and make cleaning easier.
Tri Clover Pipe Fittings
The choice of Hygienic Fittings and Ss Sanitary Fittings directly impacts product safety, system uptime, and adherence to regulations. Material grade, surface finish, and connection compatibility are key selection factors. They affect the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are vital for operations teams to select the right parts. Brands such as CSI and distributors like Installation Parts Supply publish useful purchasing information. Their catalog listings, lead times, and customer reviews can inform purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings are critical for contamination control in clean systems.
- Cleanability and corrosion resistance depend on material grade and surface finish.
- Compatible Hygienic Fittings limit downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply help with reliable sourcing.
- Proper selection of Sanitary Valves And Fittings supports regulatory compliance and product quality.
Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems: Overview
Sanitary systems rely on components designed for safety and efficiency. A sanitary fitting should include smooth surfaces, tight seals, and accessible cleaning points. These features reduce contamination and support clean-in-place and sterilize-in-place procedures.
What Sanitary Fittings Are Designed To Do
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. That design limits bacterial growth and helps maintain product purity during transfer and processing. Their design facilitates quick cleaning and minimizes cross-contamination risks.
Industries That Use Hygienic Fittings
Food processors use hygienic fittings to support safety standards and reduce spoilage risk. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants choose fittings that meet strict regulatory requirements.
Biotech facilities depend on precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is widely chosen because it delivers corrosion resistance, mechanical strength, and easy cleanability. Grades such as 304 and 316L can withstand cleaning chemicals, process fluids, and elevated temperatures. They also accept surface finishes such as electropolishing and low Ra values.
Stainless components help limit bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are critical in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish helps reduce contamination risk and makes cleaning easier. This section reviews common stainless grades, component families, and surface finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel is known for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L delivers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching grades across components helps maintain corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L early in design helps control procurement of SS Sanitary Fittings and related parts.
Common Sanitary Fitting Types And Their Roles
Ferrules are the primary connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings link flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings minimizes downtime and leak risks.
Surface Finish Importance For Cleanability
Surface roughness directly influences how residues cling to metal surfaces. A 32RA internal finish is a common specification that balances cost, cleanability, and food/beverage performance.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps minimize microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more repeatable.
| Sanitary Component | Typical Material | Common Finish | Main Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 stainless or 316L stainless | 32RA ID and OD finish | Welded transitions, pipe ends |
| Two-piece clamps Tri-Clamp | 316L preferred | Polished or electropolished finish | Quick-release hygienic joints |
| Weld fittings and couplings | 304 / 316L | Standard 32RA or electropolished | Permanent joins, elbows, tees |
| Hygienic hose fittings | 316L often specified | Electropolished where product contact occurs | Flexible connections, transfer lines |
| Sanitary valves and process fittings | 316L for wetted parts | Polished internal surfaces | Hygienic flow control |
Tri Clover Fittings And Tri-Clamp Fittings Catalog Options
Tri Clover Pipe Fittings adhere to strict dimensional standards, ensuring compatibility across manufacturers. DIN 32676 and DIN 11864-3A define ferrule face geometry and clamp interfaces. This supports sanitary lines remain leak-free and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, review size ranges, material specifications, and surface finishes. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting entry should show OAL, ID/OD finish, and compatible gasket material. This helps ensure the correct part is selected when ordering.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
Material choice affects service life, cleanability, and corrosion resistance. 316L ferrules offer superior resistance to chlorides in harsh environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This helps with the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should list clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Seek suppliers that publish detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are vital for linking pipes, valves, and equipment in clean systems. The right joint type is essential for maintaining hygiene and efficiency. This section will explain common connection styles, brand interchangeability, and customer feedback on supplier reliability.
There are various connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different trade-offs for assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints, on the other hand, provide the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien provides spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To ensure compatibility, match the nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion or trap product residues.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI often mention consistent part quality and fast shipping, with some buyers reporting next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When evaluating suppliers, consider lead times, documented quality, and after-sale support. Reliable shipping and clear specification sheets help reduce downtime and avoid costly returns when buying Sanitary Connections, CSI Sanitary Fittings, or Steel & O’Brien components.
| Connection Style | Best Use | Hygienic Cleanability | Compatibility Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Product-contact lines needing frequent disassembly | Easy cleaning when gasket and ferrules match | High when size and sealing face match; CSI fittings fit most brands |
| Welded sanitary connections | Fixed sanitary piping where cleanability is critical | Very high after proper polishing | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded | Non-product-contact lines, utilities | Moderate because threads may trap residue | Use carefully and confirm grade, thread style, and finish |
| Sanitary hose and ferrule connection | Flexible runs and transfer lines | Good if ferrule and clamp are matched | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Choosing the right sanitary components involves a few focused steps. This guide helps match size, material, finish, and gasket type to process requirements. Use the metrics and checks below to minimize downtime and ensure hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is essential. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket choice influence cleanability and seal life. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Review process pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings deliver conductivity and antimicrobial benefits in select systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Sanitary Coupling And Sanitary Weld Fittings Installation, Maintenance, And Best Practices
Keeping sanitary connections clean and reliable is critical in hygienic systems. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Correct assembly steps
Start by cleaning ferrule faces thoroughly and checking gaskets for cuts, deformation, or other defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Guidance for Sanitary Weld Fittings
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Regular sanitary maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Common issue troubleshooting
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can create uneven compression and leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pitting, or crevice corrosion can trap microorganisms. Minor scratches may be polished out and electropolished to restore the required Ra level. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and maintenance records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records support regulatory compliance and expedite troubleshooting efforts.
| Maintenance Task | Timing | Key Action | Notes |
|---|---|---|---|
| Clamp torque verification | After assembly and monthly | Verify with a calibrated torque wrench | Follow manufacturer torque tables by Sanitary Coupling size |
| Gasket condition check | Every 3–12 months or on failure | Check for cuts, hardening, swelling, or extrusion | Use matching material, profile, and durometer |
| Surface finish check | Quarterly or after welding | Measure Ra, inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Weld inspection | After installation, then yearly | Inspect for undercut, porosity, profile | Repair and re-polish Sanitary Weld Fittings as needed |
| CIP/SIP validation | Per process cycle | Monitor time, temperature, concentration | Document results for validation and regulatory review |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
A detailed catalog review is a critical first step. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, focus on clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog helps make matching gaskets and clamps easier during assembly.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to gauge market pricing and common stocking sizes. Prices reflect typical catalog entries and help set realistic budgets for procurement.
| Product | Size | Material Grade | Listed Finish | Typical Catalog Price |
|---|---|---|---|---|
| Single-pin two-piece clamp | 0.25″–0.75″ | 304 | Standard | 3.91 USD |
| Two-piece single-pin clamp | 1 inch | Type 304 stainless steel | Standard catalog finish | 4.91 USD |
| Single-pin two-piece clamp | 2″ | 304 | Standard | 5.99 USD |
| Single-pin two-piece clamp | 2.5 inch | Type 304 stainless steel | Standard | Approx. $6.93 |
| Two-piece single-pin sanitary clamp | 3″ | 304 stainless | Standard | Approx. $7.54 |
| Two-piece single-pin sanitary clamp | 4″ | 304 | Standard catalog finish | Approx. $9.16 |
| Ferrule TC | 2 inch with 1.125 inch OAL | Type 316L stainless steel | 32RA ID/OD | Approx. $4.24 |
| TC sanitary ferrule | 2 inch with 1.125 inch OAL | Type 304 stainless steel | 32RA internal and external finish | Approx. $4.06 |
| Tri-Clamp ferrule | 3 inch | 316L | 32RA ID/OD | $6.15 |
| High-pressure double-bolt clamp | 1.5″ | 316 | Polished | 12.93 USD |
| High-pressure sanitary clamp | 2″ | 316 | Polished finish | $14.62 |
| High-pressure double-bolt clamp | 3″ | 316 | Polished | Approx. $20.26 |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in various industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, enhances cleanability. This lowers contamination risks significantly. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. Use high-pressure clamps where process pressure or safety margins require them. Consistency in gaskets, clamps, and ferrules prevents leaks and simplifies maintenance. Proper installation and regular cleaning extend the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs offer competitive pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When searching for where to buy sanitary fittings, prioritize reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and reliable sources help minimize downtime. This supports product quality in hygienic processing environments.
